easi-joist® Span Tables – Guidance Only
The span tables below provide an approximate sizing guide for easi-joist® metal web joists. These values are intended for initial feasibility assessments only and should not be used as a substitute for full structural design.
Due to variations in timber grade, load conditions, bearing widths, and support configurations, accurate sizing must always be confirmed through our design team.
Contact Merronbrook Ltd for tailored advice and detailed design calculations. We cover projects across Hampshire, Surrey, Sussex, Kent, Berkshire, and the wider South East.
Indicative Span Guide (in mm)

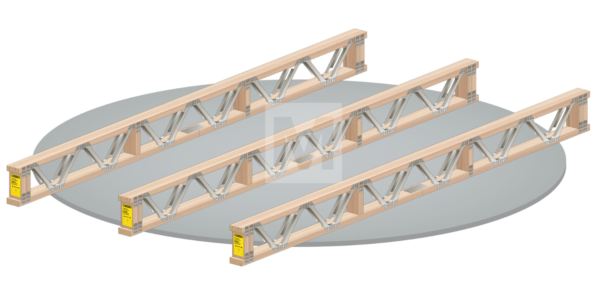

| Depth (mm) | Width (mm) | Span @ 400 c/c | Span @ 600 c/c | |
|---|---|---|---|---|
 |

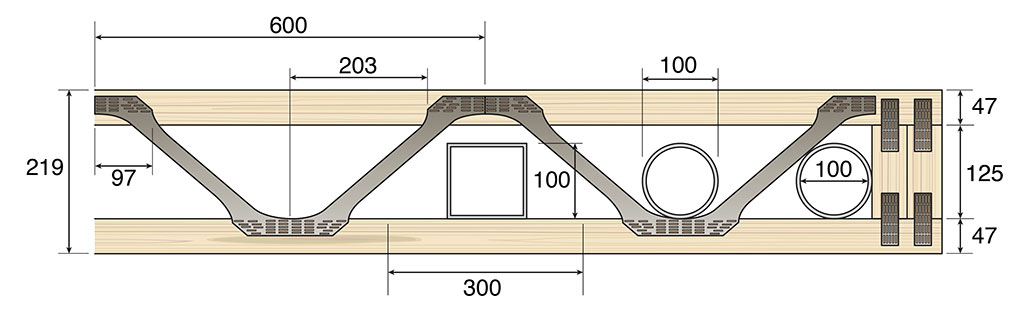

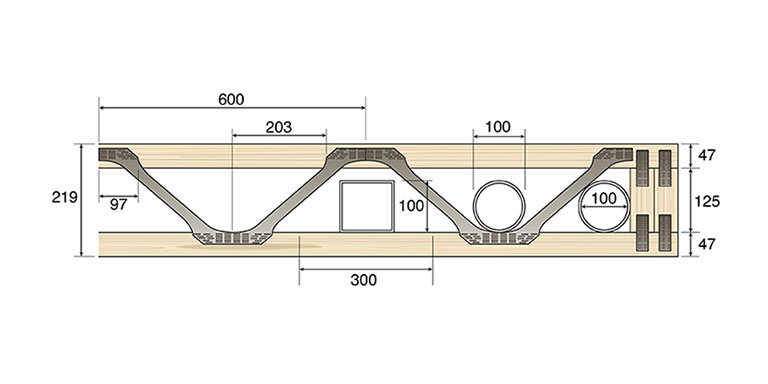

219 | 72 | ZERO to 4800 | ZERO to 4350 |
| 219 | 97 | 4801 to 5150 | 4351 to 4775 | |
| 219 | 122 | 5151 to 5450 | 4776 to 5125 | |
| 219 | 147 | 5451 to 5700 | 5126 to 5250 | |
 |
254 | 72 | ZERO to 5225 | ZERO to 4800 |
| 254 | 97 | 5226 to 5625 | 4801 to 5300 | |
| 254 | 122 | 5626 to 5950 | 5301 to 5600 | |
| 254 | 147 | 5951 to 6200 | 5601 to 5625 | |
 |

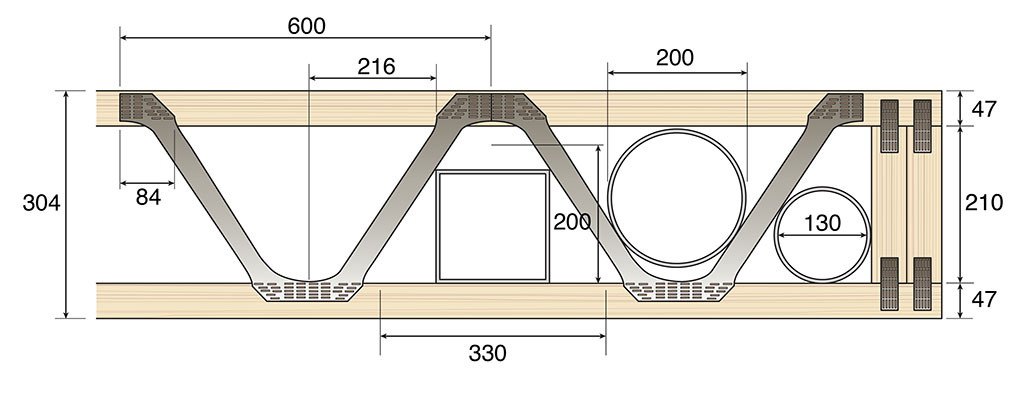

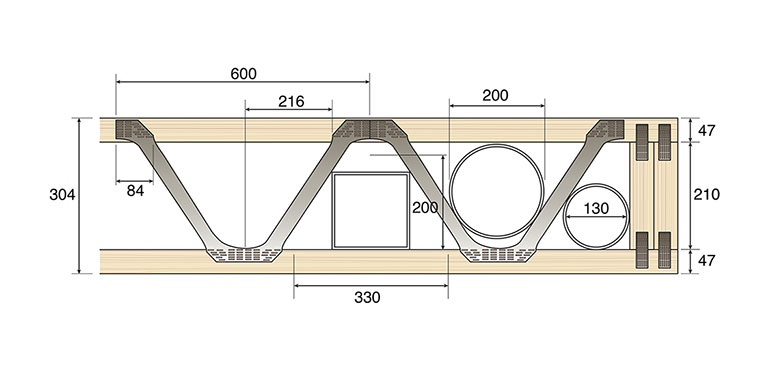

304 | 72 | ZERO to 5800 | ZERO to 5600 |
| 304 | 97 | 5801 to 6225 | 5601 to 6000 | |
| 304 | 122 | 6226 to 6575 | 6001 to 6325 | |
| 304 | 147 | 6576 to 6875 | 6326 to 6600 | |
 |

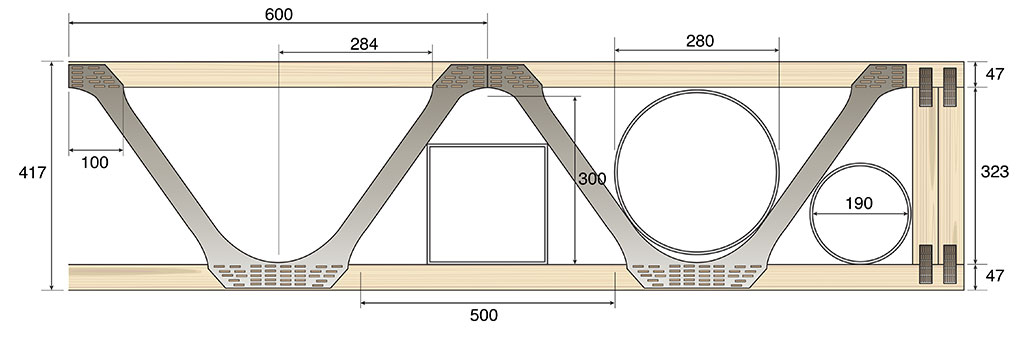

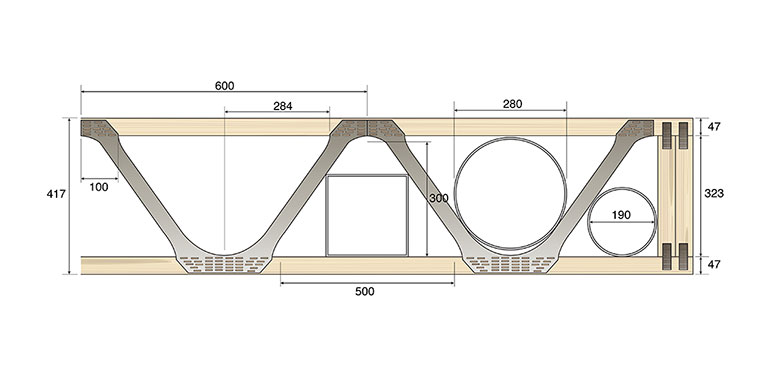

417 | 72 | ZERO to 6900 | ZERO to 6000 |
| 417 | 97 | 6901 to 7400 | 6001 to 7125 | |
| 417 | 122 | 7401 to 7825 | 7126 to 7250 | |
| 417 | 147 | 7826 to 7900 |  |
Important Notes
- Maximum spans assume a minimum 100mm wide support bearing.
- A securely fixed floor deck is required to provide lateral restraint and prevent buckling.
- Web orientation and support placement can influence joist capacity.
- Strongbacks are recommended for all joists spanning over 4m.
- For integration details, visit our Floor Joists page.
For a full structural design tailored to your project, contact our technical team today.
